Create A New Quartus II Project
First things first, open up Quartus II. It should look something like this »

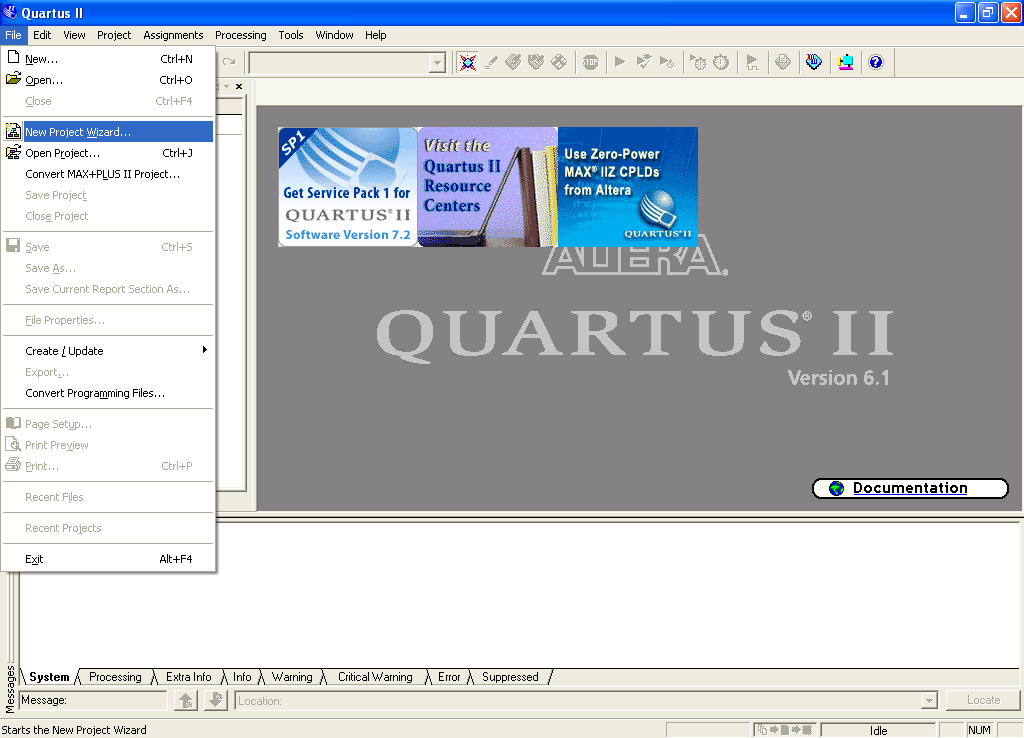

File -> New Project Wizard

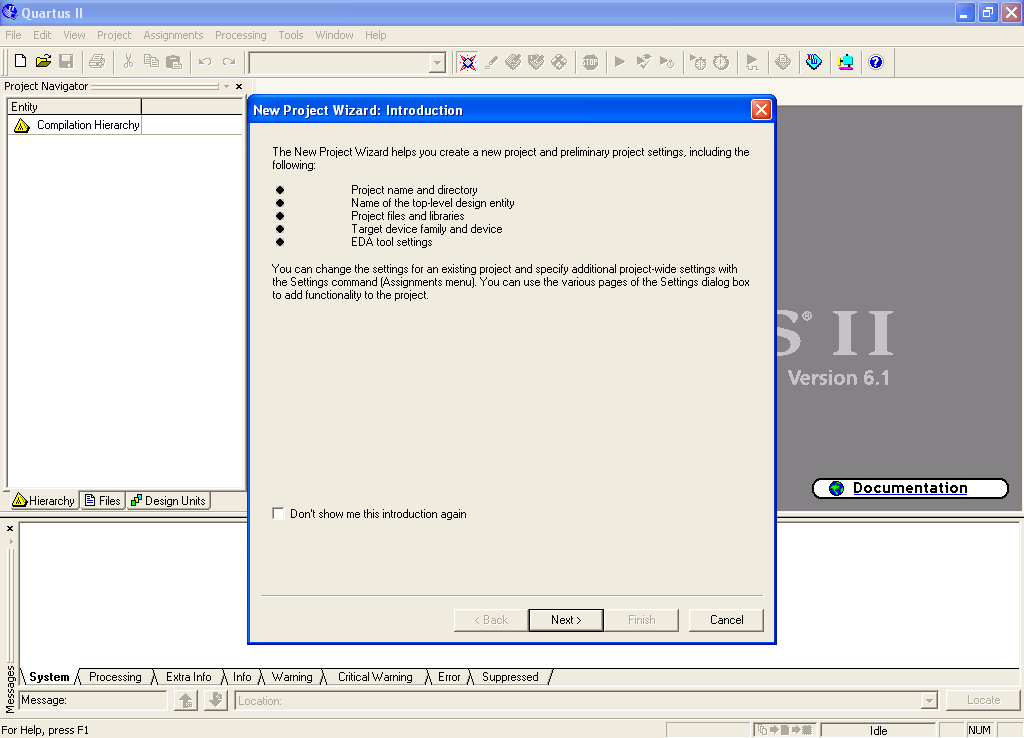

The wizard will open up in a smaller window. Click Next »

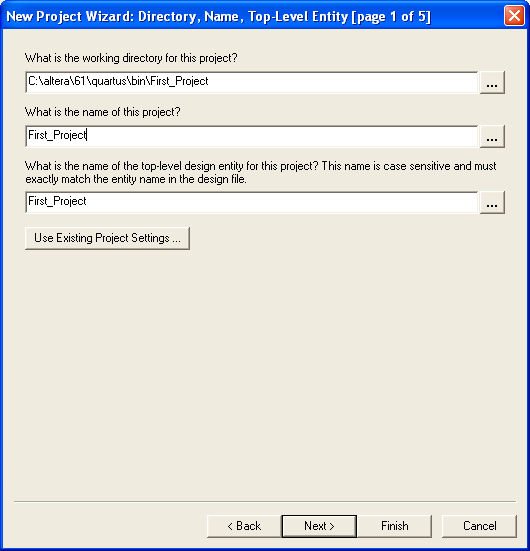

Fill out the project location & Name...try to avoid spaces in both names »

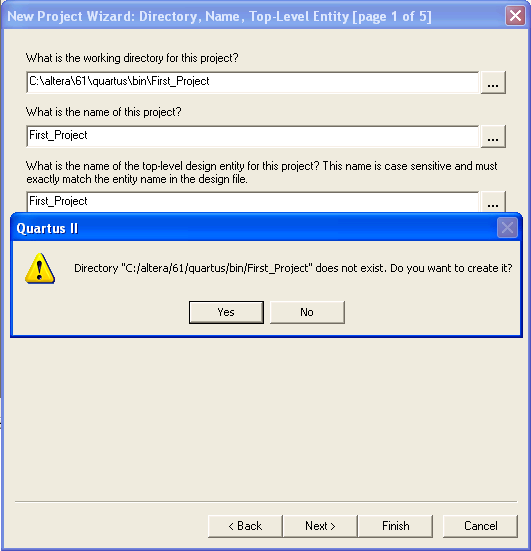

Directory doesn't exist...fine click YES & Next »

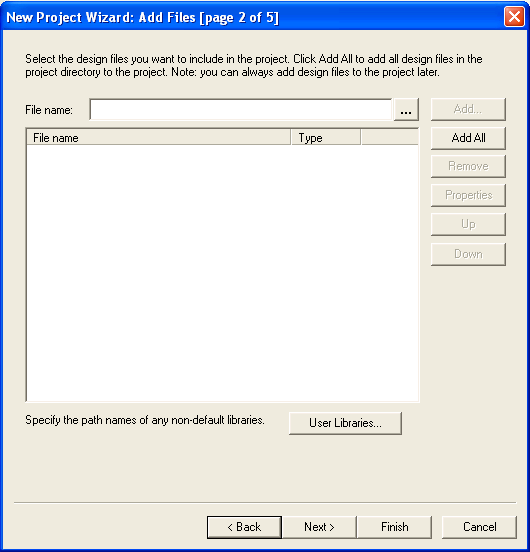

You can add existing files to the project here »

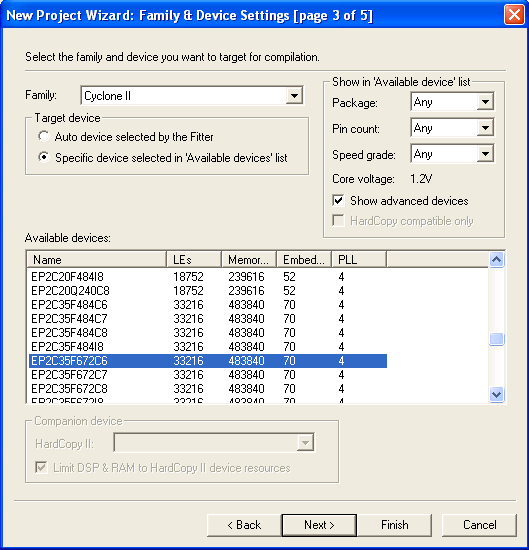

Select Family: Cyclone II, Device: EP2C35F672C6 »

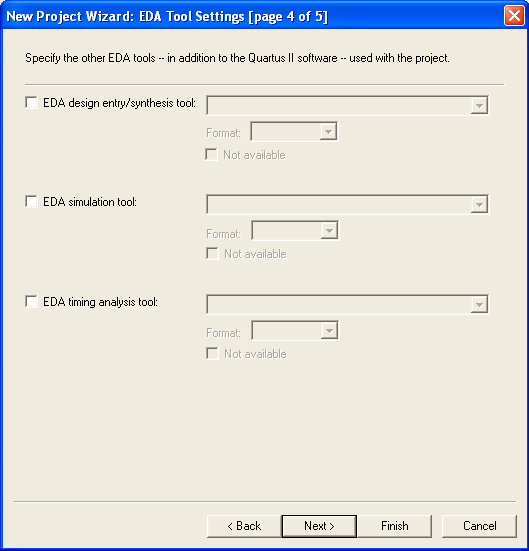

You can choose simulation tools, we don't need any right now »

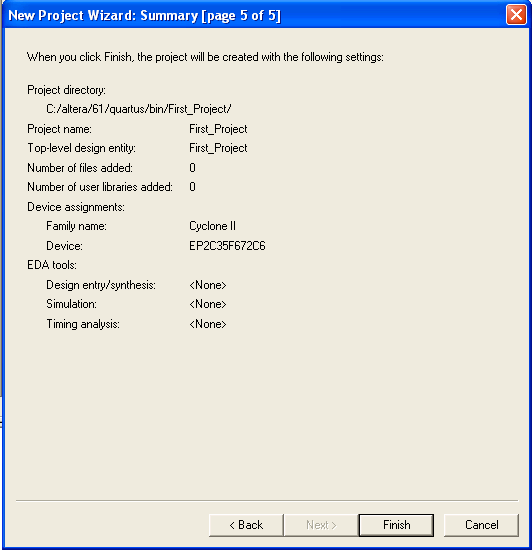

Overview of your project, click Finish »

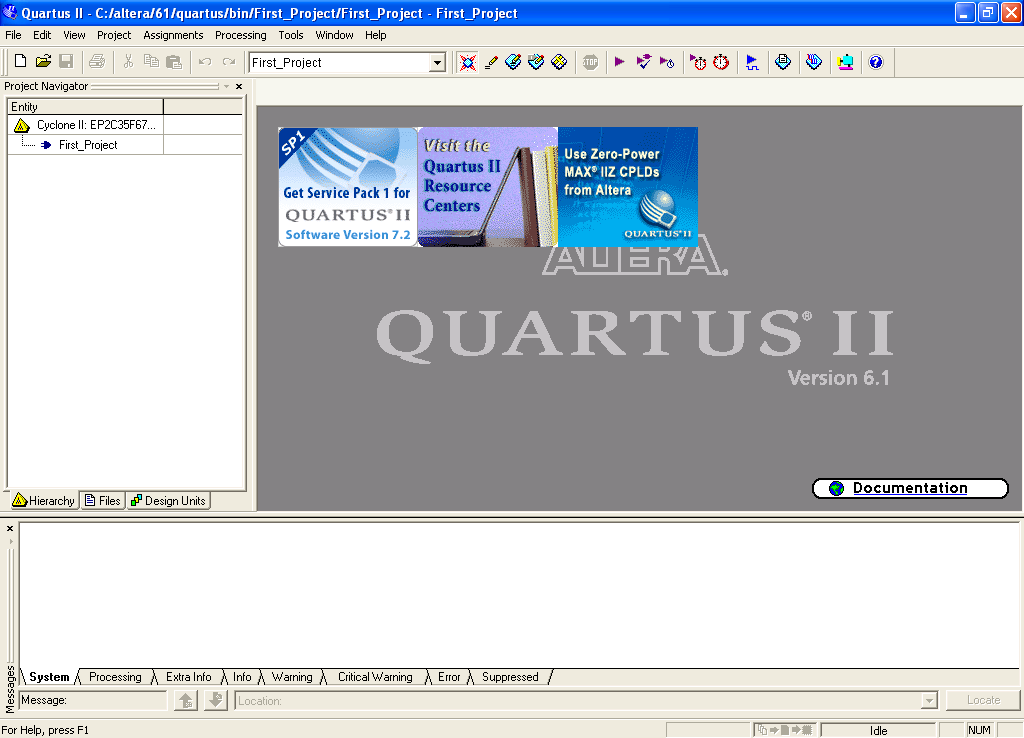

The project is now in Quartus II »
Now it's time to make our program using the schematic programmer!
