Electrical Hardware Design
The electrical side of this project is seemingly easier to do than the mechanical hardware side as only a few connections need to be made and built onto the breadboard.

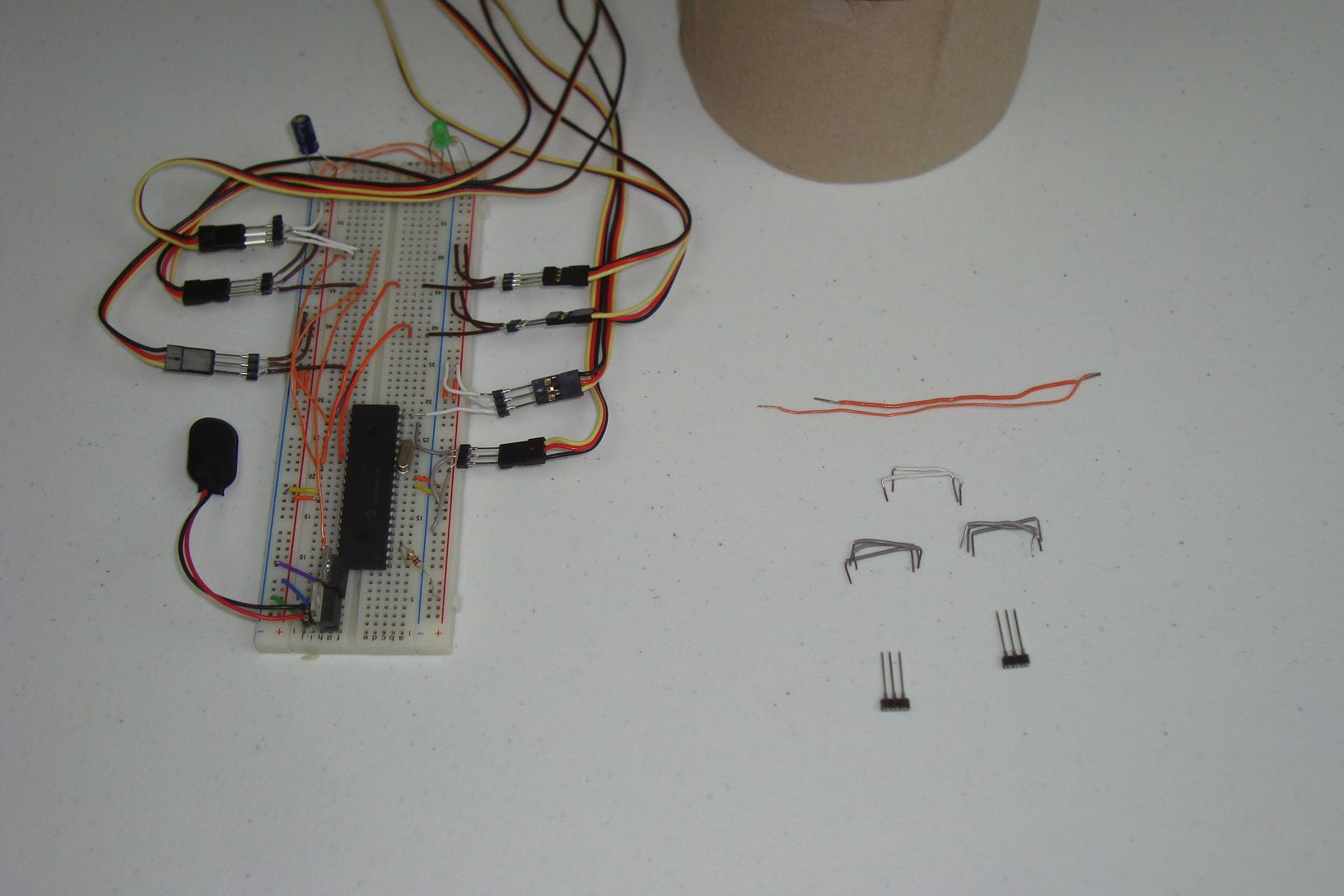

·Here you can see the parts we need to add, not too many.

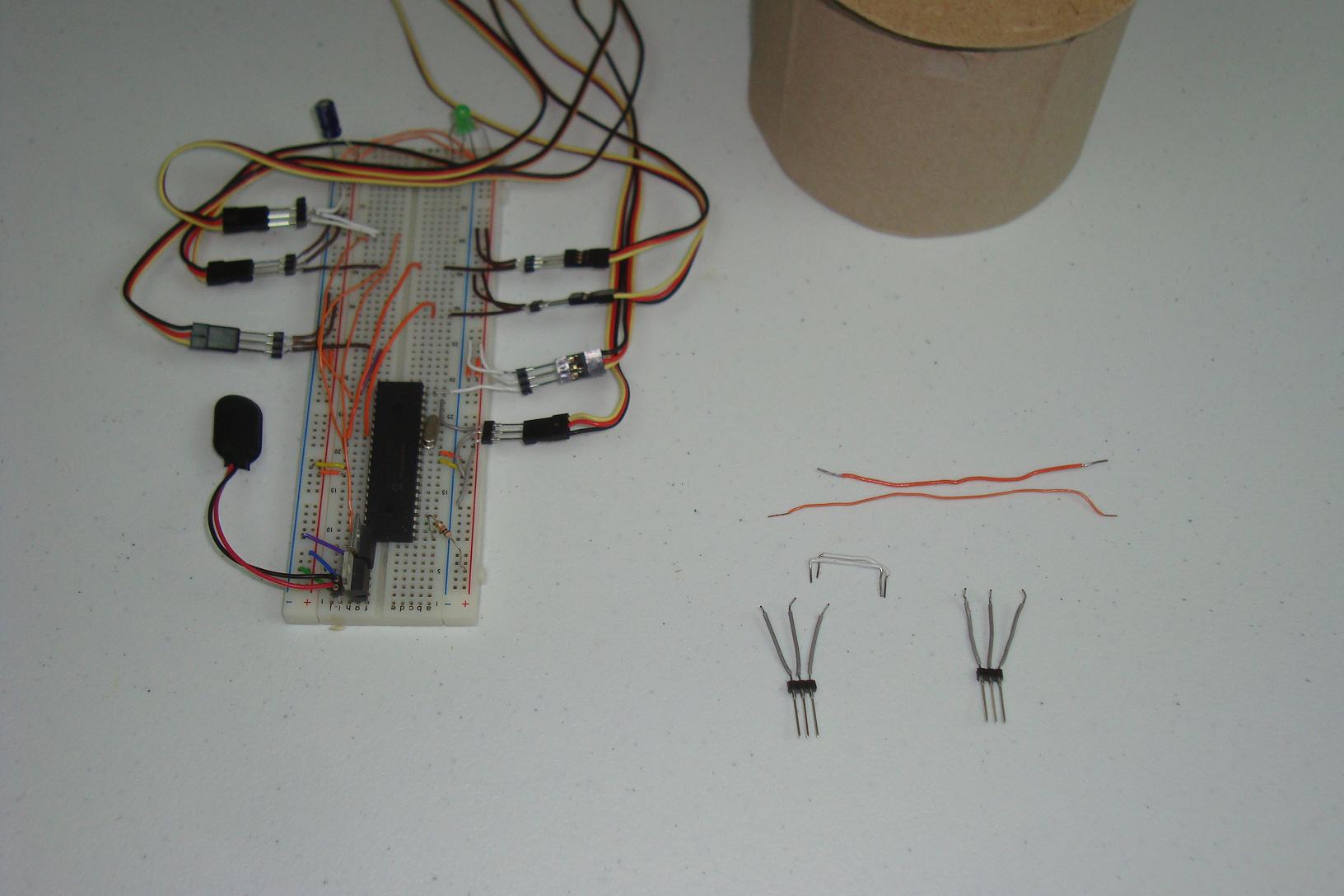

·First the SIPs are loaded with some jumper wire.
·Then, SIPs are placed on the breadboard.

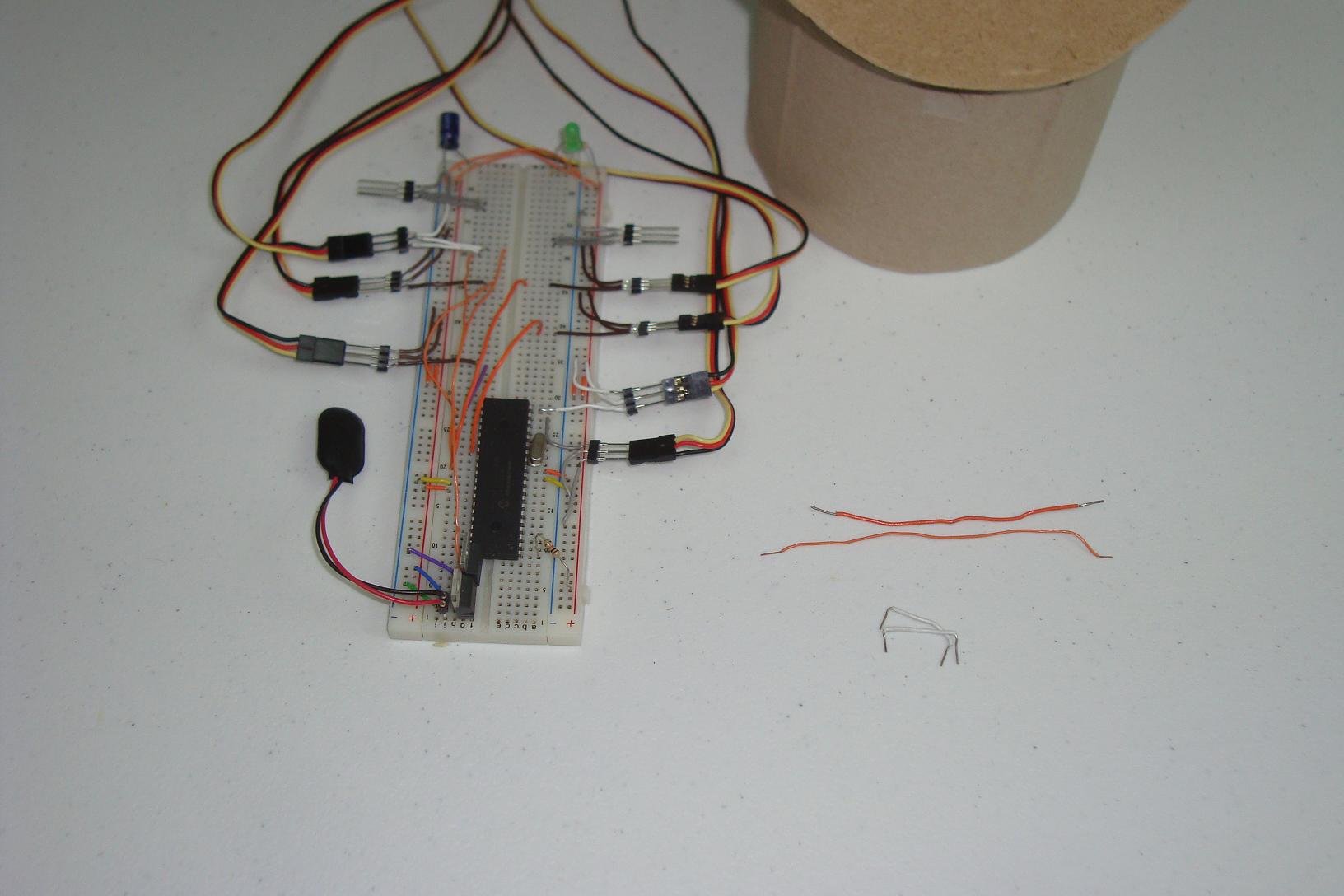

·Power, Ground and Signal connections are made to the SIPs.

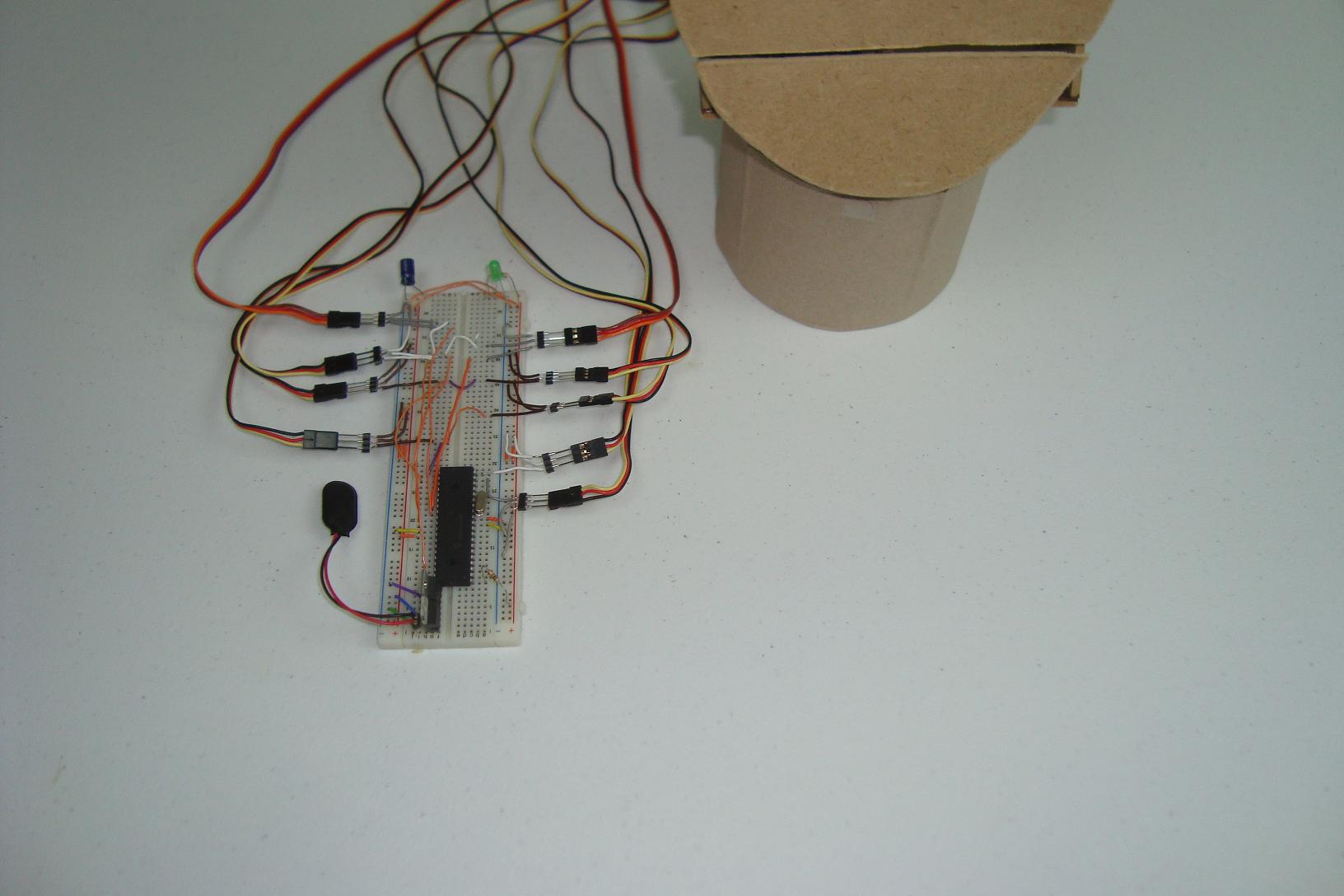

·The two new servo ports are connected to the Pan/Tilt servos.
