Hardware Design

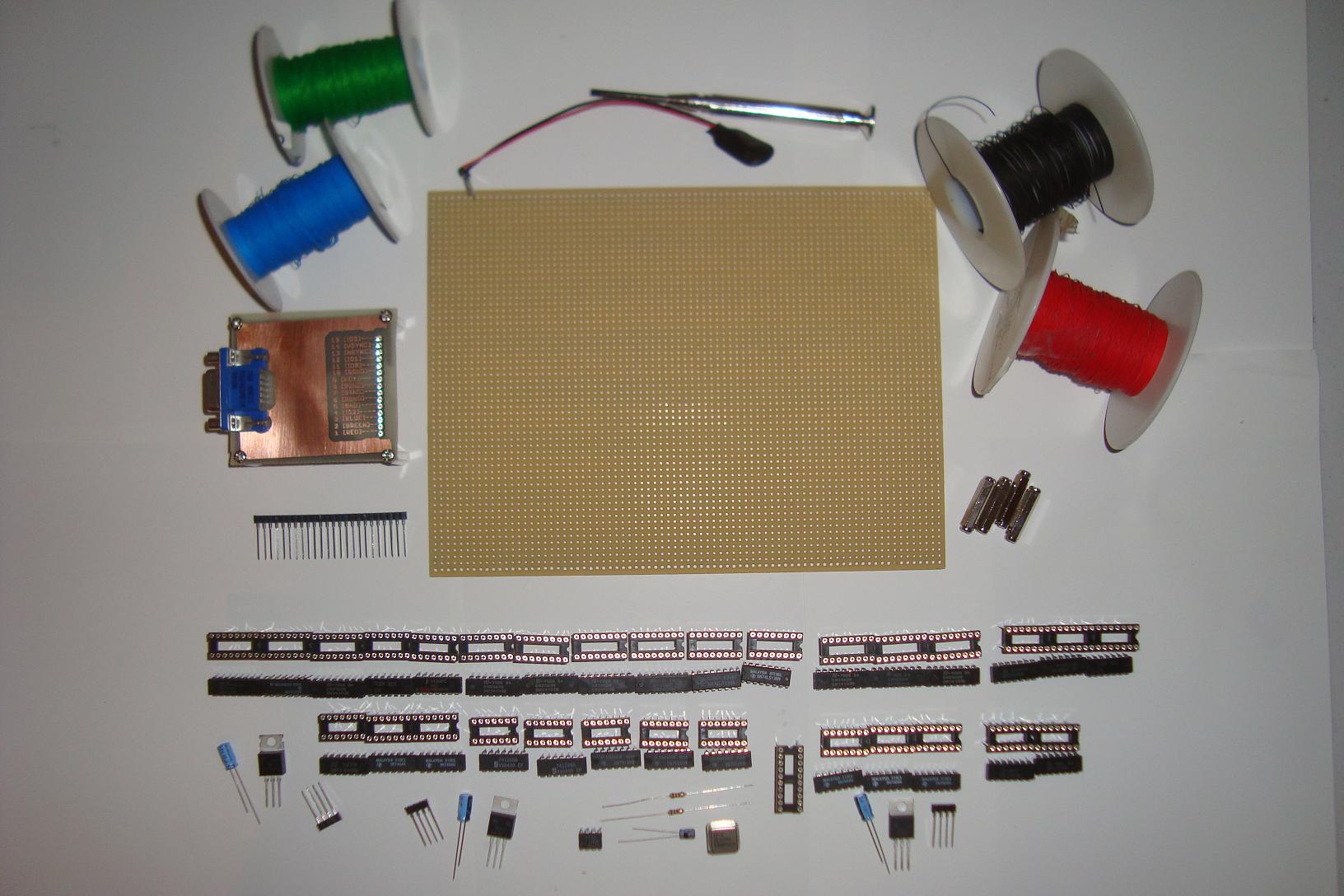

The Masochist's Video Card has four parts that need to be built. The Hsync Circuitry, Vsync, Color Generator and a 15 pin d-sub connector breakout board for connecting to the LCD. The picture below shows you all the parts Used in the project:
Building The Hsync Circuit

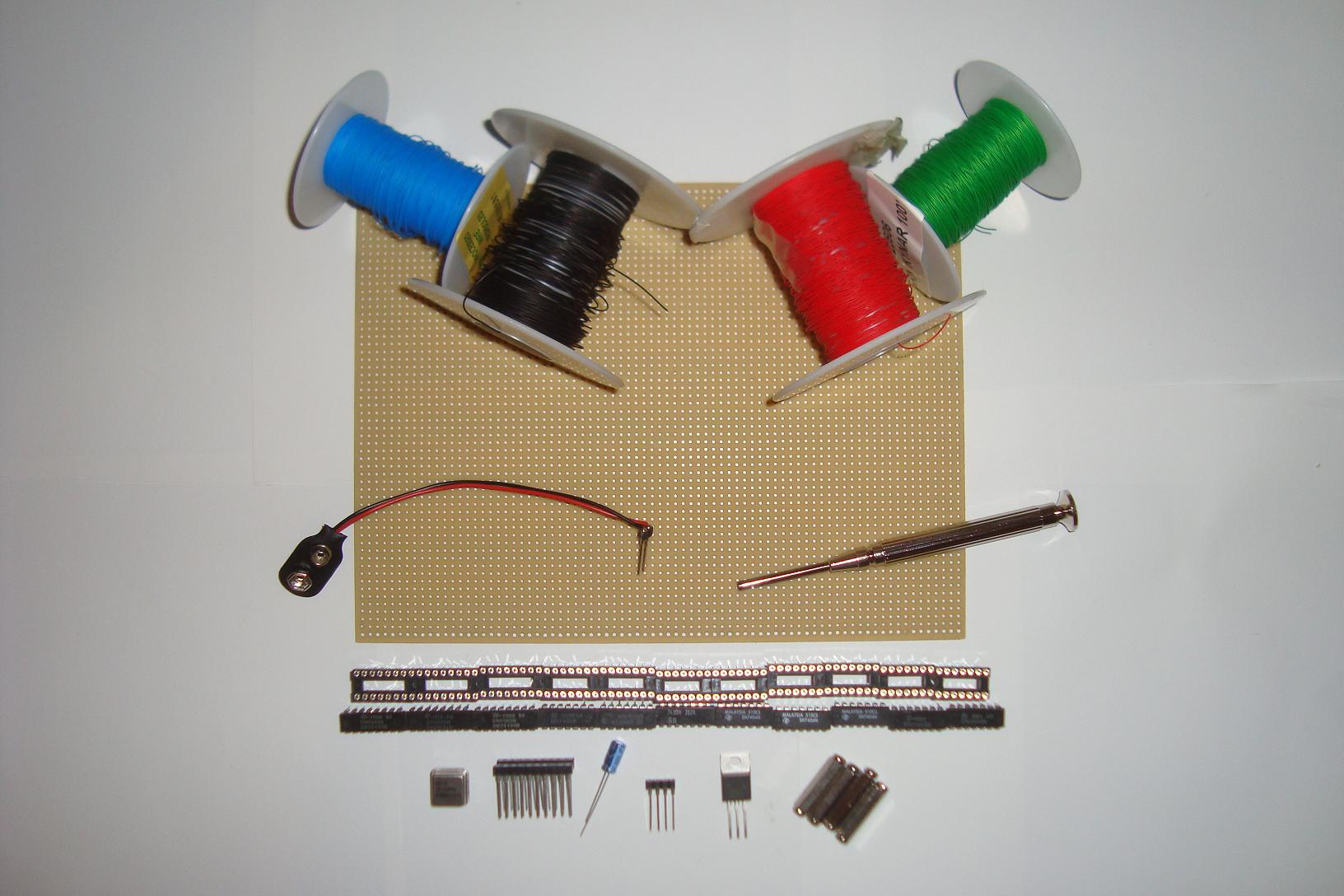

The first section that we will build is the horizontal synchronization circuit. Gather all of the parts from the schematic together like I did and let's get started wire-wrapping!

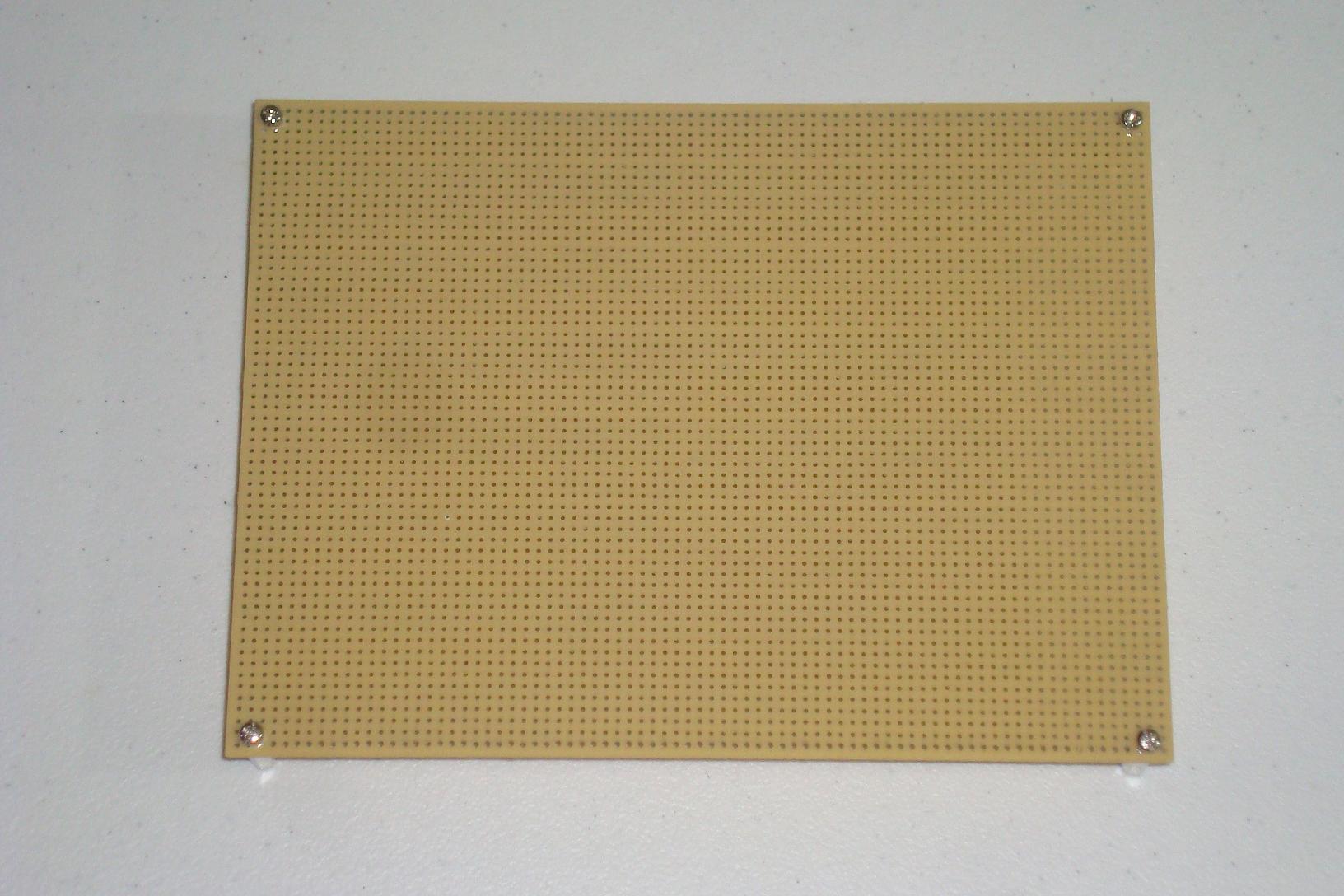

·First drill some holes in the corners for the 4 stand-offs.

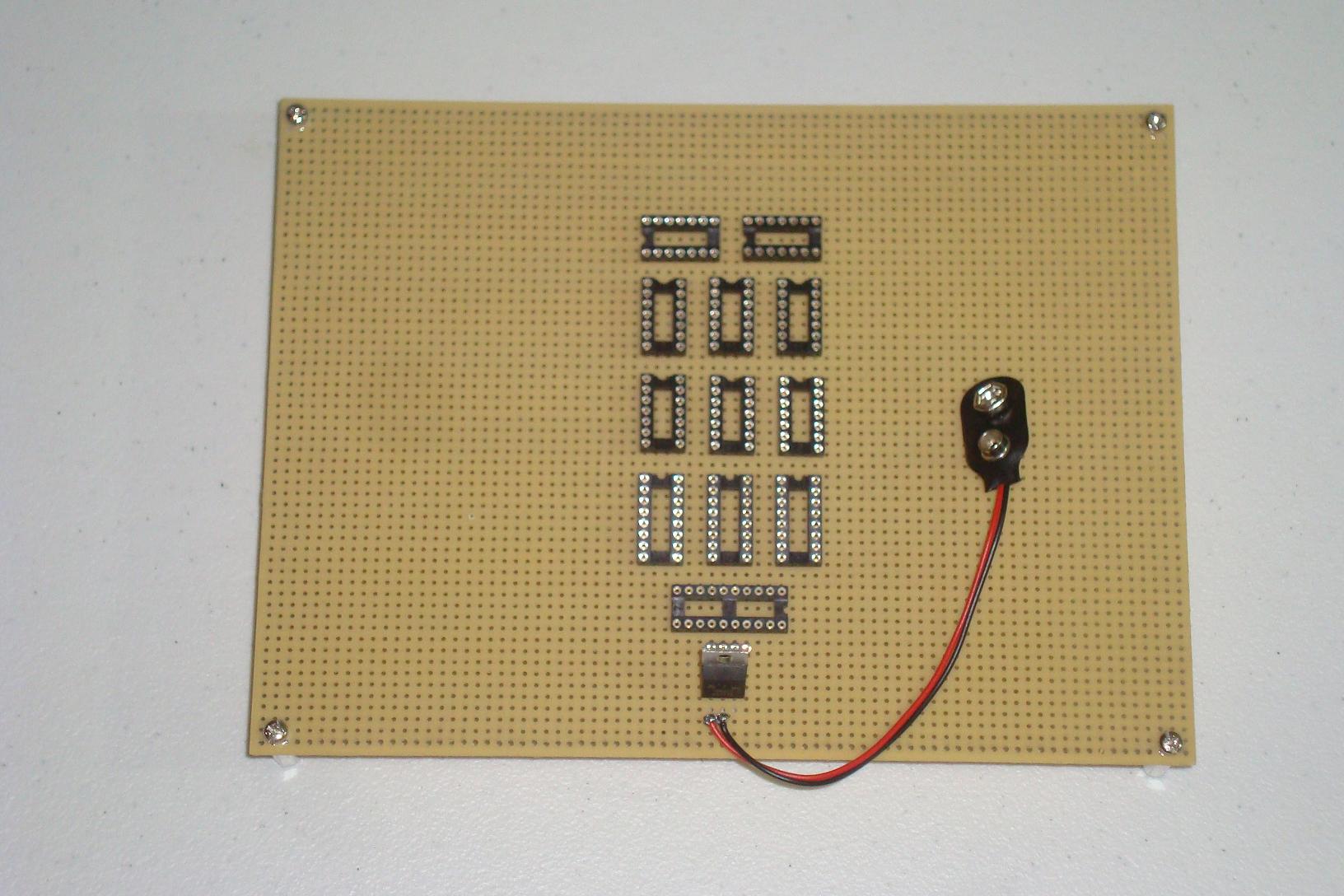

·Now, layout the wire-wrap IC sockets to where you want each IC to be.

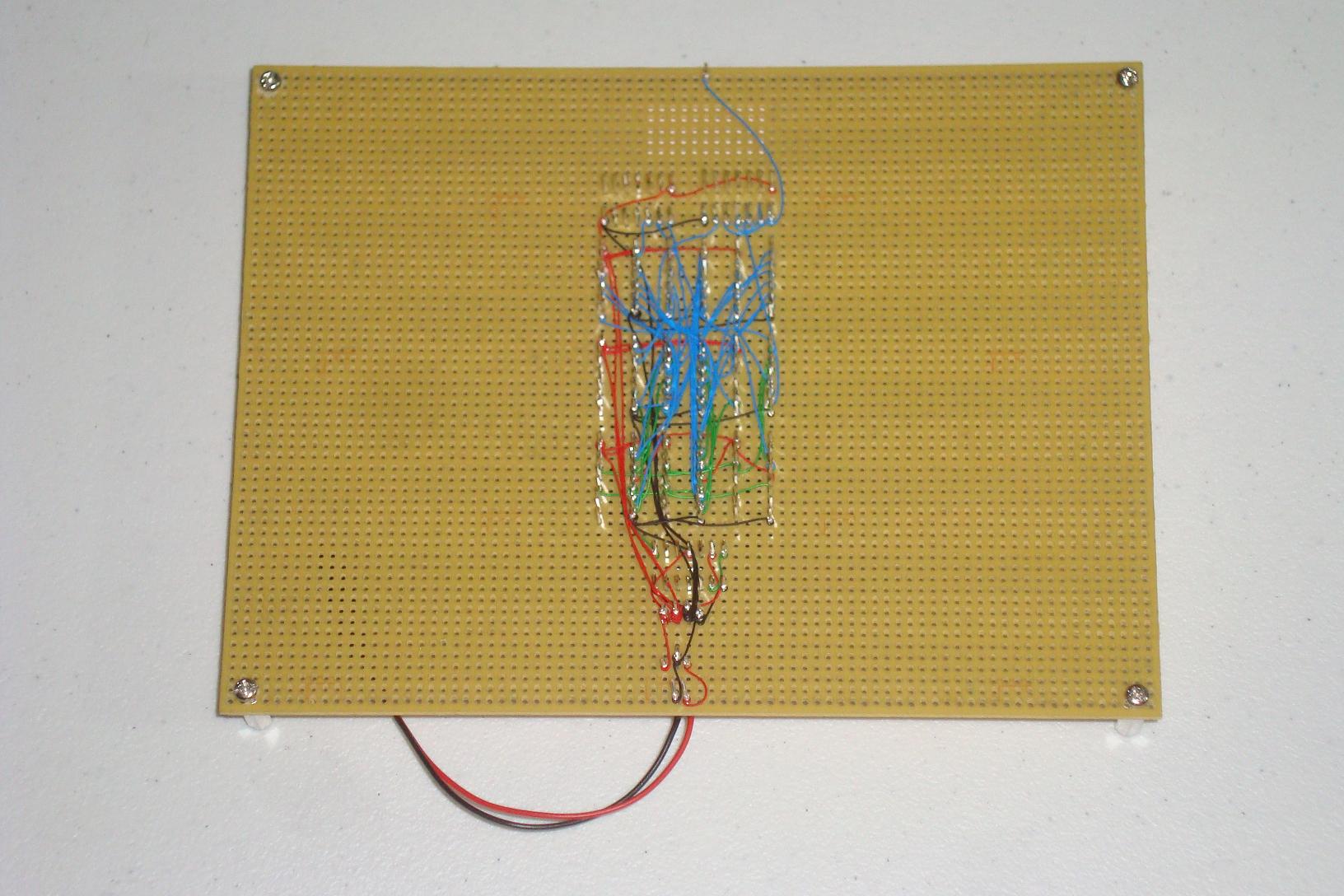

·Flip the board over and get wire-wrapping. Follow the schematic.

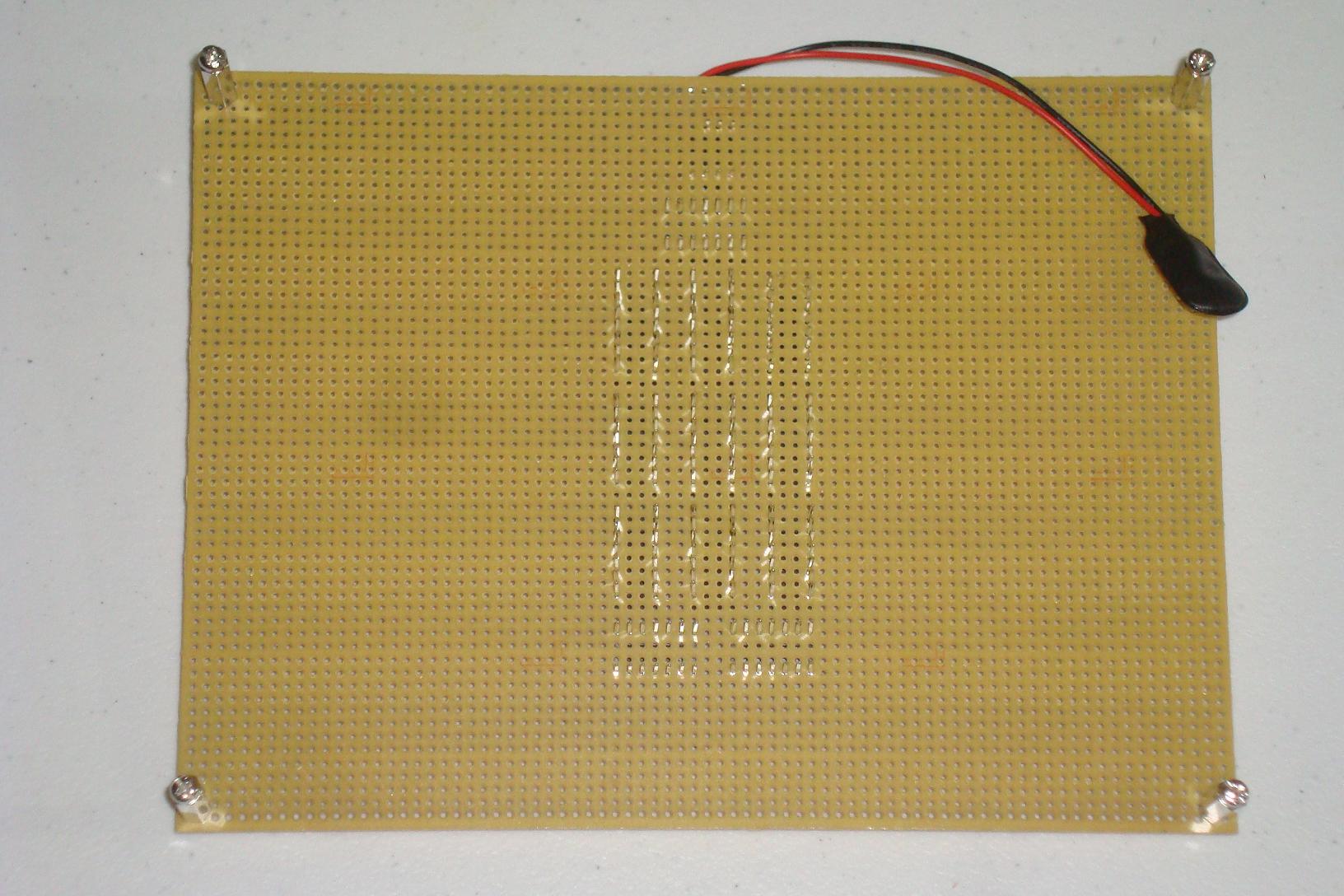

·Wire-Wrap and TEST! Wire-Wrap and TEST! Now your Hsync Circuit is done.

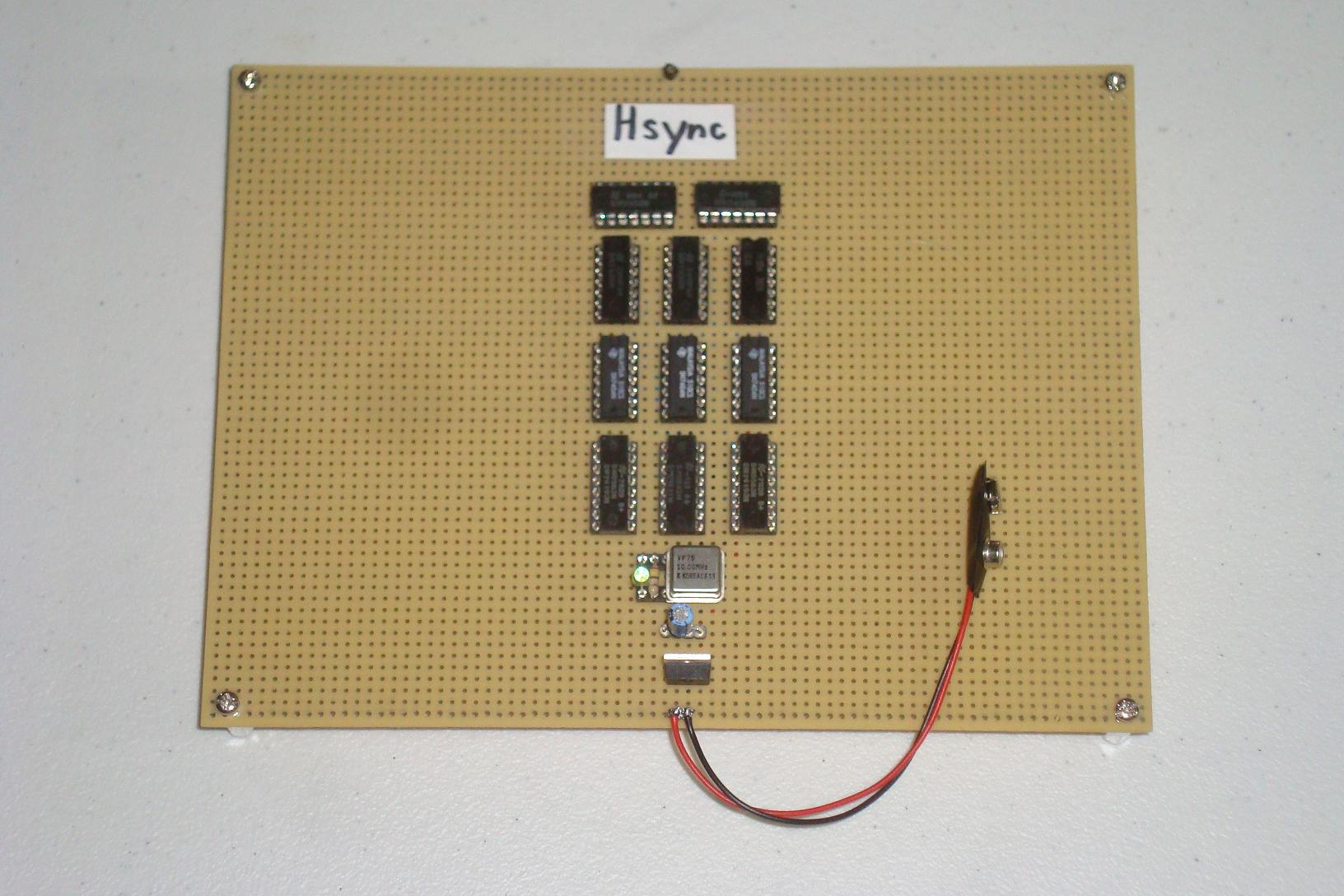

·Add a label to the output pin so the world knows which part of the VGA input that it belongs to.
· If the circuit is wire-wrapped together correctly, we will see the 26.4uS horizontal line output to the Hsync pin over and over. Now, onto the Vsync circuitry!
The Masochist's Video Card has four parts that need to be built. The Hsync Circuitry, Vsync, Color Generator and a 15 pin d-sub connector breakout board for connecting to the LCD. The picture below shows you all the parts Used in the project:
Building The Hsync Circuit
The first section that we will build is the horizontal synchronization circuit. Gather all of the parts from the schematic together like I did and let's get started wire-wrapping!
·First drill some holes in the corners for the 4 stand-offs.
·Now, layout the wire-wrap IC sockets to where you want each IC to be.
·Flip the board over and get wire-wrapping. Follow the schematic.
·Wire-Wrap and TEST! Wire-Wrap and TEST! Now your Hsync Circuit is done.
·Add a label to the output pin so the world knows which part of the VGA input that it belongs to.
· If the circuit is wire-wrapped together correctly, we will see the 26.4uS horizontal line output to the Hsync pin over and over. Now, onto the Vsync circuitry!
