Building The Digital Circuit

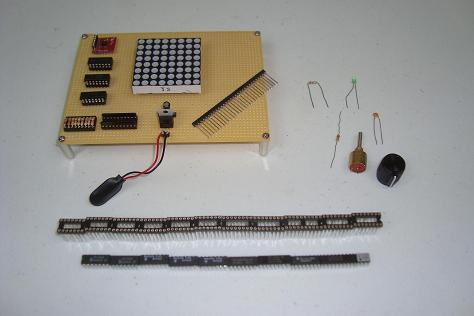

Below you can see a picture of all the parts needed to build the digital side of this project. When you're ready, start wire-wrapping!

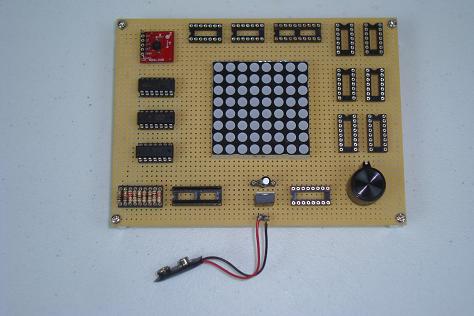

·Here's the layout used for parts on the board.

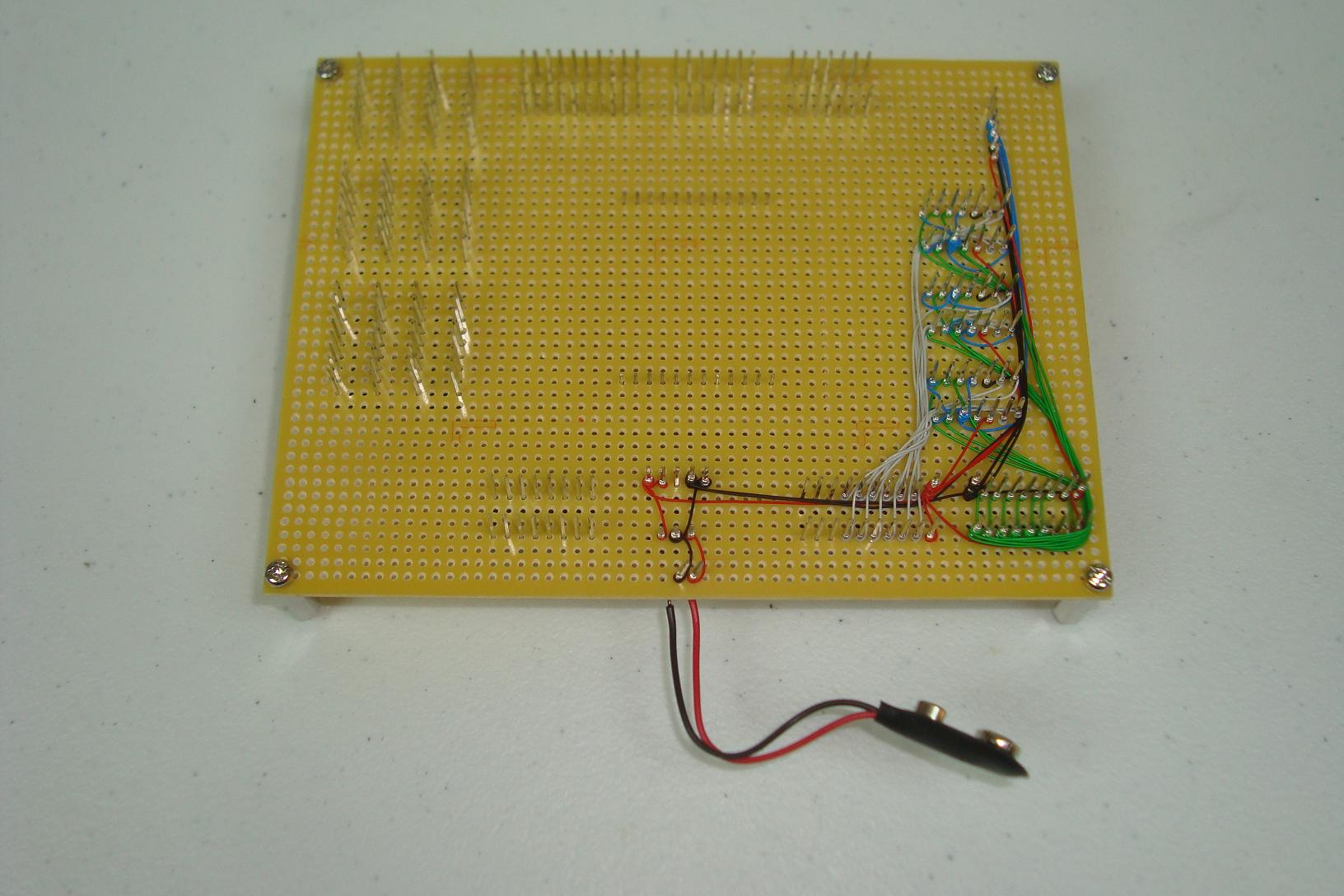

·Flip the board over, follow the schematic and get wire-wrapping!

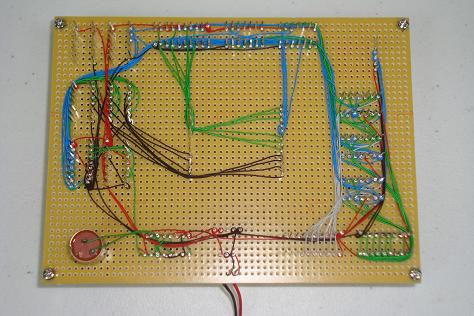

·I switched the orientation of the LED matrix, other than that circuit is wired up!

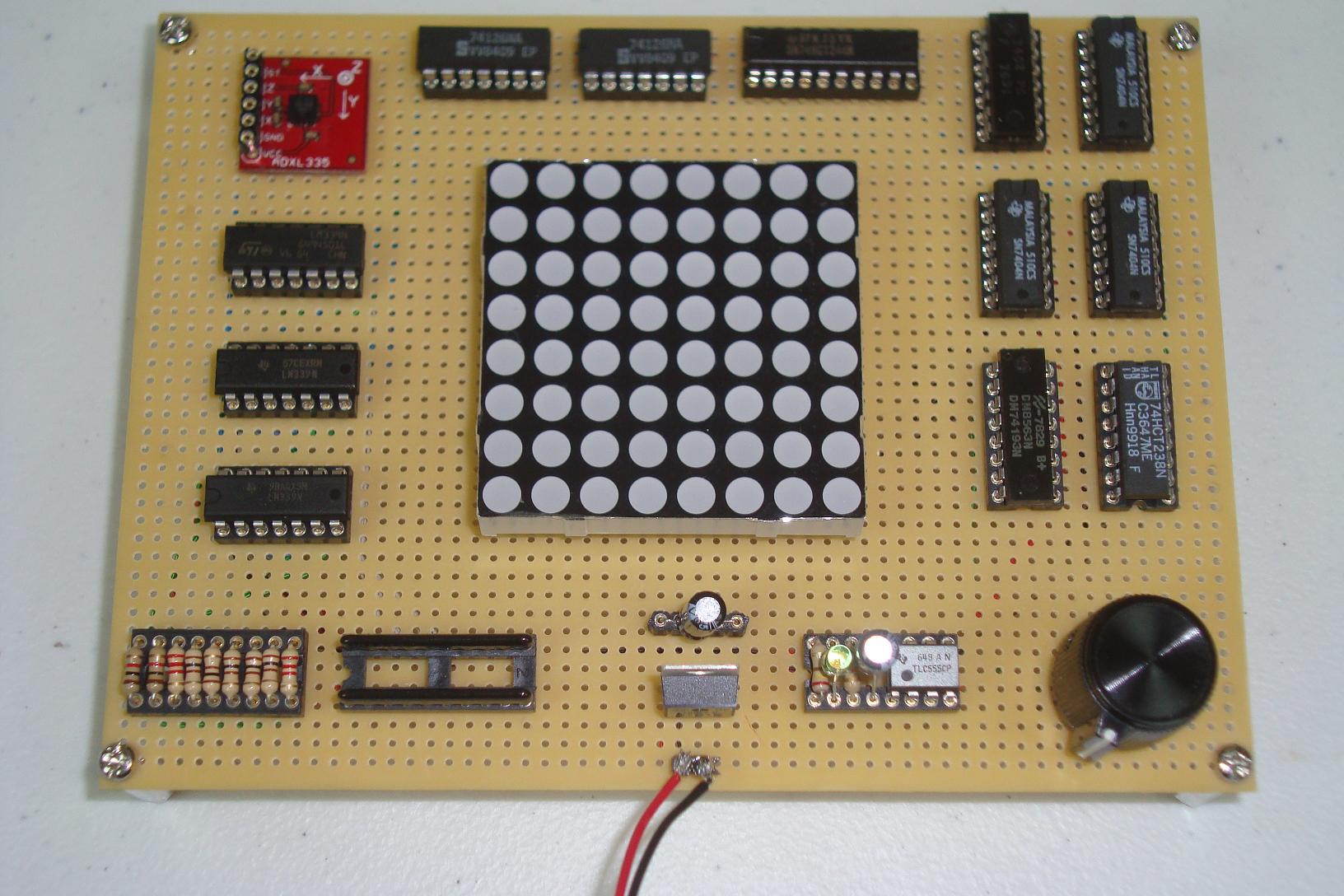

·Finally, the IC's are loaded into the circuit and tested.
·That was the last step, if you wired everything up according to the schematic, it should work. Continue on to the data section to see how the project works.
