Gut The Transmitter
First things first, we need to take the main board out of the transmitter. Here we'll go over the quick process of taking out a few screws and removing the board.

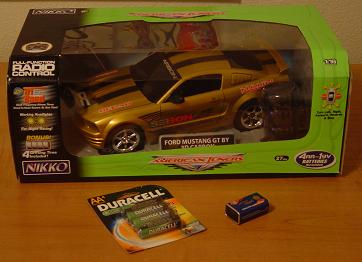

Brand New Never Been Opened, Hurray! »
Check Out The Drifting Tires! »

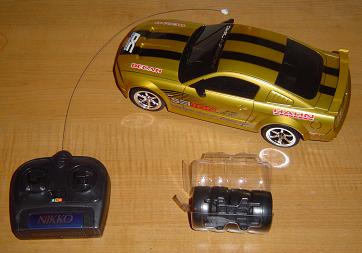

Here Is The transmitter Untouched »
Take Out Four Screws In The Back »
Now We Can See The Board »

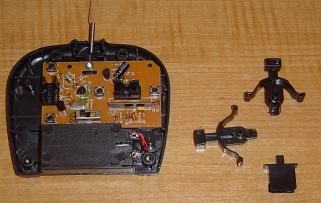

Take Out The Three Switches »
Unscrew & Remove The Antenna »
Lastly, Clip Off The Power Wires »

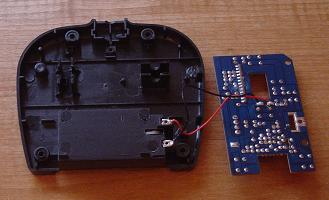

The Board We'll Modify, Back To Back »
Now that we have the transmitter board by itsself we can modify it and include it in our new transmitter circuit seen in schematic #2.
